Products & Services

CMN Combattante BR71

Naval Vessels

CMN’s naval vessels range from 15-meter high-speed interceptors to corvettes of over 90 meters.

Photo du patrouilleur Ocean Eagle vu du dessus en pleine mer

Corvettes

Corvettes are ocean-capable vessels designed for long-term surveillance missions within and beyond Exclusive Economic Zones (EEZ). Their offensive and defensive capabilities allow them to conduct effective and sustained monitoring on the high seas.

Photo de la corvette

BR71 MK II

Length Overall: 70.3 m
Beam Overall: 11.0 m
Maximum speed: 30 knots
Range: 2500 NM at 12 knots
Crew: 50 members
Hull: Steel
Superstructure: Aluminium
Classification: Bureau Veritas

Photo de la corvette seaguard96 en pleine mer

SEAGUARD 96

Length Overall: 96 m
Beam Overall: 13.4 m
Maximum speed: 28 knots
Range: 2800 NM at 15 knots
Crew: 60 members
Hull: Steel
Superstructure: Aluminum
Classification: DNV

Combattantes

The FS Combattantes class is an evolution of our Combattante III long-range fast attack craft class. These vessels are primarily designed for littoral warfare and defense operations against air and surface threats.

Photo du navire combattante FS46

FS46

Length Overall: 46 m
Beam Overall: 7.6 m
Maximum speed: + de 35 knots
Range: 2000 NM at 15 knots
Crew : 24 members
Hull: Steel
Superstructure: Aluminum
Classification: Bureau Veritas

FS56

Length Overall: 56 m
Beam Overall: 8.2 m
Maximum speed: + de 38 knots
Range: 2500 NMat 15 knots
Crew: 32 members
Hull: Steel
Superstructure: Aluminum
Classification: Bureau Veritas

FS65

Length Overall: 65.1 m
Beam Overall: 9.2 m
Maximum speed: + de 34 knots
Range: 2500 miles nautiques at15 knots
Crew: 43 members
Hull: Steel
Superstructure: Aluminum
Classification: Bureau Veritas

Vigilantes

La large gamme des Vigilantes est une solution éprouvée par de nombreuses marines tant en France qu’à l’étranger. cette gamme issue de la famille des Offshore Patrol Vessels – OPV offre une réponse adéquate et économique pour de multiples missions de surveillance : lutte contre la piraterie, recherche et sauvetage, protection de l’environnement, des ressources halieutiques ainsi que des plateformes pour l’extraction offshore.

CL55 MK II

Length Overall: 54.4 m
Beam Overall: 8.9 m
Maximum speed: 22 knots
Range: 3500 NM at 12 knots
Crew: 27 members
Hull: Steel
Superstructure: Aluminum
Classification: Bureau Veritas

CL65

Length Overall: 65 m
Beam Overall: 10.6 m
Maximum speed: 25 knots
Range : 3500 NM at 12 knots
Creaw : 33 members
Hull: Steel
Superstructure: Aluminum
Classification: Bureau Veritas

Photo du navire CL75 MK2 en pleine mer

CL75 MK II

Length Overall: 75 m
Beam Overall: 12.5 m
Maximum speed: 22 knots
Range: 7000 NM at 12 knots
Crew: 65 members
Hull: Steel
Superstructure: Aluminum
Classification: Bureau Veritas

Patrol Vessels

The Ocean Eagle 43 is part of the Offshore Patrol Vessel (OPV) range. This highly efficient trimaran combines high cruising speeds with excellent autonomy, thanks to its low fuel consumption while providing a high level of comfort even in rough sea conditions.

Photo de l'Ocean Eagle aux

OCEAN EAGLE 43

Length Overall: 43.6 m
Beam Overall: 15.2 m
Maximum speed: 30 knots
Range: 5000 NM at 11 knots
Crew: 13 members
Hull and superstructure: Composite
Classification: Bureau Veritas

Photo du patrouilleur Ocean Eagle en pleine mer

OCEAN EAGLE 43 MH

Length Overall: 43.6 m
Beam Overall: 15.2 m
Maximum speed: 19 knots
Range: 2500 NM at 14 knots
Crew: 15 members
Hull and superstructure: Composite
Classification: Bureau Veritas

Interceptors

The wide range of interceptors provides effective defense against coastal threats, safeguarding vulnerable ships and offshore oil and gas platforms. Designed for special forces, these vessels are specially conceived to conduct sea strike operations, reaching speeds of over 70 knots.

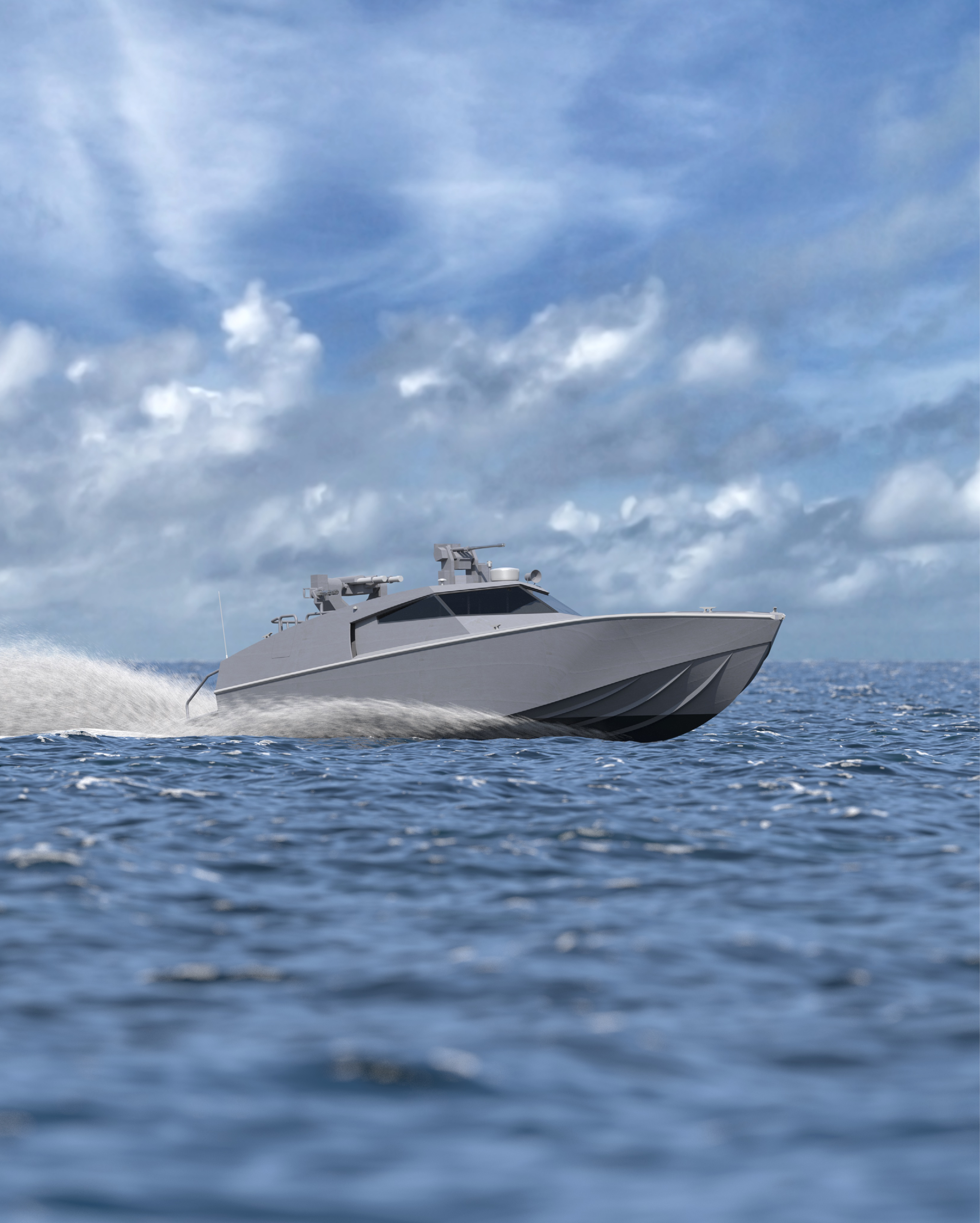

DV 16

Length Overall: 17.6 m
Beam Overall: 3.4 m
Maximum speed: 65 knots
Range: 250 NM at 40 knots
Crew: 6 members
Hull and superstructure: Composite
Classification: Bureau Veritas

Photo de la proue du navire HSI25 en mer

HSI 25

Length Overall: 25.4 m
Beam Overall: 6.32 m
Maximum speed: +45 knots
Range: 600 NM at 25 knots
Crew: 7 members
Hull and superstructure: Aluminium
Classification: Bureau Veritas

Photo du navire HSI32 MK3 en mer

HSI32 MK III

Length Overall: 32.2 m
Beam Overall: 7 m
Maximum speed: +46 knots
Range: 1200 NM at 12 knots
Crew: 12 members
Hull and superstructure: Aluminium
Classification: Bureau Veritas

Photo de l'intercepteur FPV37 en mer

FPV 37

Length Overall: 36 m
Beam Overall: 7.7 m
Maximum speed: +41 knots
Range: 1000 NM at 18 knots
Crew: 12 members
Hull: Steel
Superstructure: Aluminium
Classification: Bureau Veritas

Services

In addition to providing proven naval solutions to navies, CMN offers a comprehensive range of post-delivery services. These include training (both in navigation and maintenance), Integrated Logistics Support (ILS), In-Service Support (ISS), and Transfer of Technology (TOT). This extensive suite of services supports the customers throughout the entire lifecycle of their vessels.

CMN KSA HSI

Marine Renewable Energies

HydroQuest

For several years, CMN has been actively engaged in the energy transition through its subsidiary HydroQuest, focusing on harnessing the ocean’s potential.

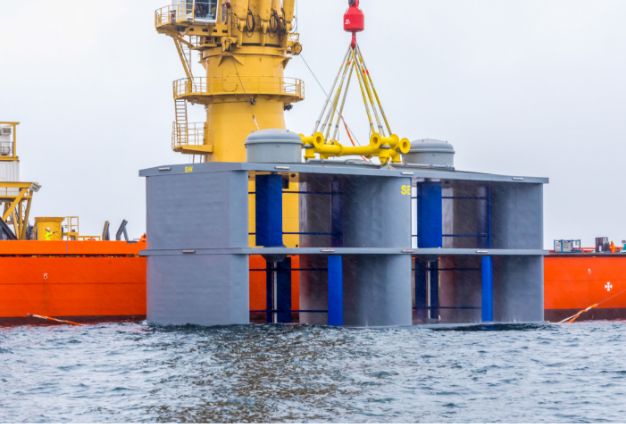

Prototype d'hydrolienne HydroQuest
Prototype d'hydrolienne HydroQuest

As a leader in the French tidal energy sector, HydroQuest has developed a marine turbine prototype capable of generating electrical energy, which has operated flawlessly for two years at the Paimpol Bréhat test site in Brittany.

Located in the Cotentin Peninsula of Normandy, the tidal stream at Raz Blanchard possesses one of the strongest energy potentials in the world, with a capacity exceeding 4 GW. In this context, CMN is collaborating with QAIR and HydroQuest on the Flowatt pilot farm project, for which the company is responsible for manufacturing the 7 tidal turbines to be installed at Raz Blanchard.

FLOWATT

Nuclear Industry

ACE

Founded over 30 years ago by CMN and Endel, ACE is a company dedicated to metalwork, piping, and mechanics.

ACE is equipped to handle manufacturing and maintenance operations, as well as in the production of complex, high-value-added, and high-risk equipment.

Industrie nucléaire
